HM1.8 Self Loading Concrete Mixer Machine to Singapore

2020-03-18

Product Name: HM1.8 Self Loading Concrete Mixer Machine

Type: 4x4self loading concrete mixer trucks

Destination: Singapore

Delivery Time: September, 2019

Capacity: 6-8 m3/h

Engine: Yuchai/Cummins/Yunnei are all available.

Function: loading, weighing, pumping, mixing, transport, unloading,washing.

Features: four wheel drive, 270 degree unloading, longer service life

Get quotation: If you like to get the latest self loading transit mixer price, welcome to send inquiry to feedom@haomei-machinery.com.

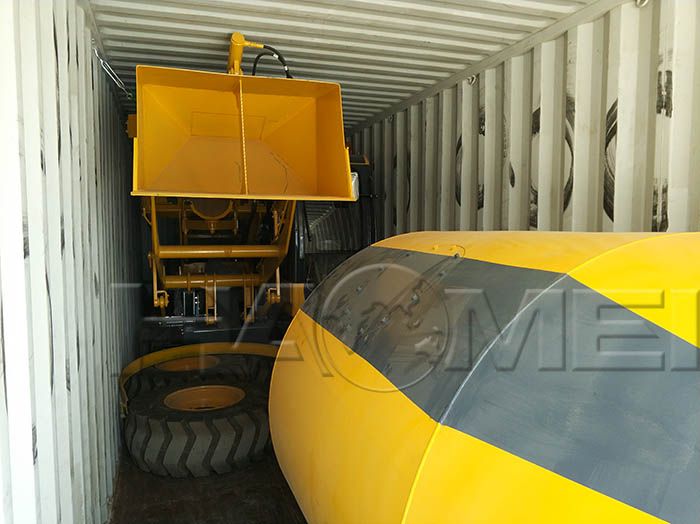

Self loading concrete mixer singapore customer.jpg

Item	1.8 Cubic Self Loading Concrete Mixer Truck
LxWxH(mm)	7300x2650x3750
Total Weight	5666kg
Tank Volume	2680
Concrete Output	1.8m³/batch
Tank Rotation Speed	13 rpm
Motor	BM5-160
Engine	Yuchai/Cummins/Yunnei are all available
Engine Power	55 kw/75ps
Maximum climbing angle	30 degree
Speed	20 km/h
Minimum ground clearance	280 mm
Minimum turning radius	5270 mm
Front and rear wheel-base	2600 mm
Left and right wheel-base	1510 mm
Water tank volume	400 L
Fuel tank volume	63 L
Fuel consumption(L/h)	11.23L
Feeding time ( minutes/tank)	4 minutes
