HM 2.6 Self Mixer

Haomei Concrete Pumps

What Is Self Loading Mobile Concrete Mixer

Haomei self loading mobile concrete mixer features intelligent control, powerful engine, four wheel drive and 270 degree unloading. In addition to superior mobility, it combines loading, mixing, transport, discharging, pumping and washing.


Compared with the mobile concrete batching plant, HM2.6 cubic self loading concrete mixer price is far more cheaper and no need of complicated installation. It is an ideal equipment for the concrete production in remote places. Another popular model is HM3.5 cubic self loading mixer machine.

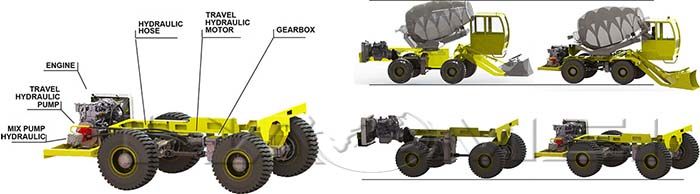

Chassis of self loading concrete mixer.jpgFeatures of Self Mixing Concrete Truck

  1. Accurate electric weighing system.

  2. High efficiency: 12-14 cubic meter per hour.

  3. The mixing unit is hydraulic slewing 270 degree for high discharge over 1.8m to the four sides of the vehicle.

  4. The clever discharge cone is designed,to provide stronger material sealing capacity and higher filling rate,thus improving the loading capacity of the tank up to 6%.

  5. Quality parts chosen from worldwide: Yuchai engine, steel wire super-resistant tire, ROPS-FOPS type cabin,etc.

Products Show

HM 2.6 Cubic Self Loading Mobile Concrete Mixer.jpg

Specification of Self Loading Mobile Concrete Mixer

Item

2.6 Cubic Self Loading Mobile Concrete Mixer

LxWxH(mm)

7860x2750x4100

Total Weight

6500kg

Tank Volume

3580L

Concrete Output

2.6m³/batch

Tank Rotation Speed

13 rpm

Motor

BM5-160

Engine

Yuchai 4102

Engine Power

78 kw/106 ps

Maximum climbing angle

30 degree

Speed

30 km/h

Minimum ground clearance

380 mm

Minimum turning radius

5300 mm

Front and rear wheel-base

2800 mm

Left and right wheel-base

1700 mm

Water tank volume

500 L

Fuel tank volume

75 L

Fuel consumption(L/h)

11.23 L

Feeding time ( minutes/tank)

5 minutes
