HM2.0 Self Mixer

Haomei Concrete Pumps

The Best Selling HM2.0 Cubic Self Loading Mixer

Haomei self loading mixer is fully hydraulic driven construction machinery with powerful function. It has all the needed functions of loading,mixing, transport, discharging and washing. 270 degree or 290 degree discharging is a perfect solution for the narrow construction sites. Powerful engine, four wheel drive and microcomputer control enables it reliable performance all the time.

HM2.0 cubic self loading mixer has the output of 2.0 m3/batch and 10 m3/h,which is an ideal choice for all the small commercial and civil construction projects in remote places. A little big model is HM2.6 cubic self mixing concrete truck.

Strict and Advanced Manufacturing Process

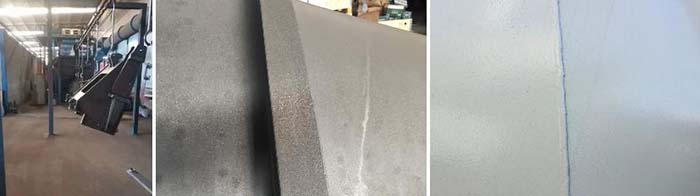

1. Shot blasting machine

With the surface processing by this machine, the tank will have better painting effect.Overall machine features attractive appearance.

Surface of self loading mxier for painting.jpg

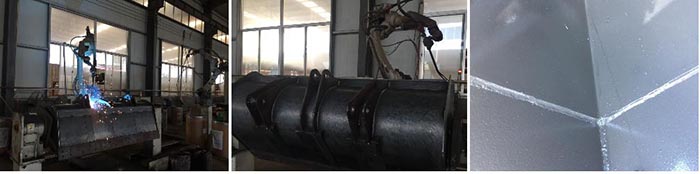

2. Robot welding

It not only greatly improves efficiency, but also has higher accuracy and effect.

robert welding of self loading concrete mixer.jpg3. Closed painting room

In order to assure good painting and environmental protection, here is closed painting room.

4. Sufficient material in stock

Since we have sufficient material in stock, we can quicky finish the order even it is a big order of dozens of sets.

Sufficient raw material of self mixing truck.jpg

5. Test Run

Here are wide areas for our customers to test the self loading concrete mixer truck, and welcome to test the mixer truck in our factory.

Test run of  self loading concrete mixer truck.jpgTesting Video of Self Loading Mixer For Sale

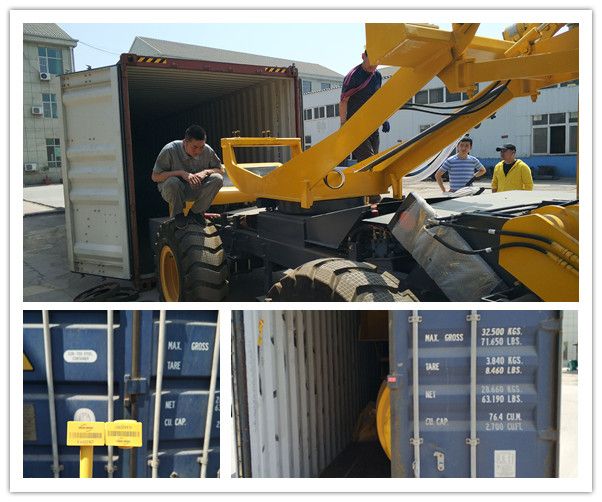

Latest Cases of Self Loading Concrete Mixer Truck To Tanzania

HM2.0 Self Loading Concrete Mixer Truck To Tanzania.jpg

The Main Technical Parameter of Self Loading Mixer

Name

Item



Specification
Net6200 KG
Transmission4 WD
BrakeAir Brake
ChassisOff-road

Loader bucket

capacity

0.4m3
ControlHydraulic

Tilt angle

20%

Speed

High

0-30KM/H
Low0-9KM/H

Mini turning radius

4.5M/R

Engine

Type

Yunnei 4102

Yuchai or Cummins are both available

Rated Power/RPM

76KW/2200RPM

Max.Torque/RPM

360N.M/1400RPM

Cylinder

4

Starter

Electric

Cooling type

water cooling

Maxing Drum

Output capacity

2.0M3

Bank Angle

16 °

Chute

Swing Angle

≥50°

Angle control

Hydraulic

Loader control

Hydraulic 4 way stick

Tyre model

16/70-20 construction tyre

Electronic parts

Waterproof circuit

Hydraulic oil

France Total brand
