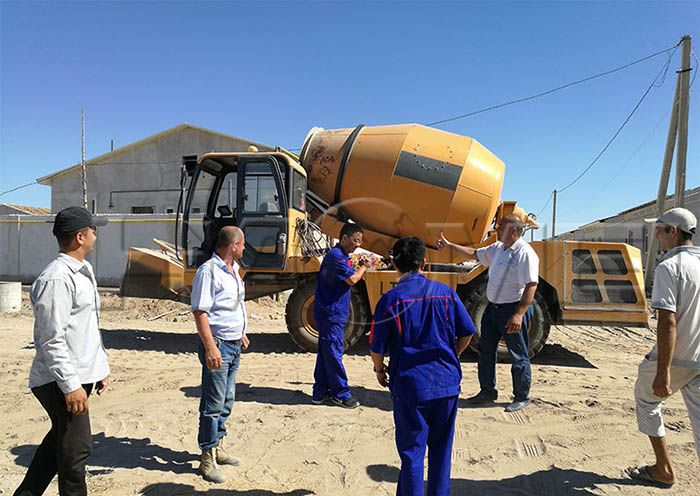

HM4.0 Self Loading Concrete Mixer Truck to Uganda
2020-03-18Product Name: HM4.0 Self Loading Concrete Mixer Truck
Destination: Uganda
Delivery Time: October, 2019
Capacity: 16 m3/h
Engine: Cummins
Function: loading, weighing, pumping, mixing, transport, unloading,washing.
Features: four wheel drive, 290 degree unloading, longer service life
Get quotation: If you like to get the latest self loading mobile mixer price, welcome to send inquiry to feedom@haomei-machinery.com.
Name | Item | Specification | |
Whole Truck | Net | 8300 KG | |
Gross | 12675KG | ||
Transmission | Full Hydraulic | ||
| 4 WD | |||
Brake | Air Brake | ||
Chassis | Off-road | ||
Tread | 1880 | ||
Wheelbase | 2250mm | ||
Loader bucket | capacity | 0.6m3 | |
| Control | Hydraulic | ||
Tilt angle | 30% | ||
Speed | High | 0-25KM/H | |
| Low | 0-20KM/H | ||
Mini turning radius | 6.5M/R | ||
Tyre model | 16/70-20 | ||
Engine | Type | Cummins | |
Rated Power/RPM | 92KW/2200RPM | ||
Max.Torque/RPM | 460N.M/1400RPM | ||
Cylinder | 4 | ||
Starter | Electric | ||
Cooling type | water cooling | ||
Mixing Drum | Output capacity | 4M3 | |
Bank Angle | 16 ° | ||
Rotation Angle | 19-21R/min | ||
Chute | Swing Angle | ≥60° | |
Angle control | Hydraulic | ||
Size | Long: 176cm | ||
| Short: 40cm | |||
Loader | Weighing model | computer control | |
Concrete Standard | C15.C20.C25 C30 | ||
Accuracy | Cement | ≤±2%/time | |
Relative Error | ≤±3%/time | ||
water | ≤±1%/time | ||
Additive | ≤±1%/time | ||
Admixture | ≤±2%/time | ||
Loader control | Hydraulic 4 way stick | ||
Hydraulic oil tank | 240L | ||
Water tank | 550L | ||
Over size | 7500*2700*3380mm | ||
