The Mixing Drum of Self Loading Mixer Machine

2021-06-28

In the current engineering construction, concrete is usually mixed by concrete mixer or concrete batching plant. However, if the transportation distance and transportation time of concrete is longer, the cement will precipitate and separate from water, which will affect the quality of concrete.

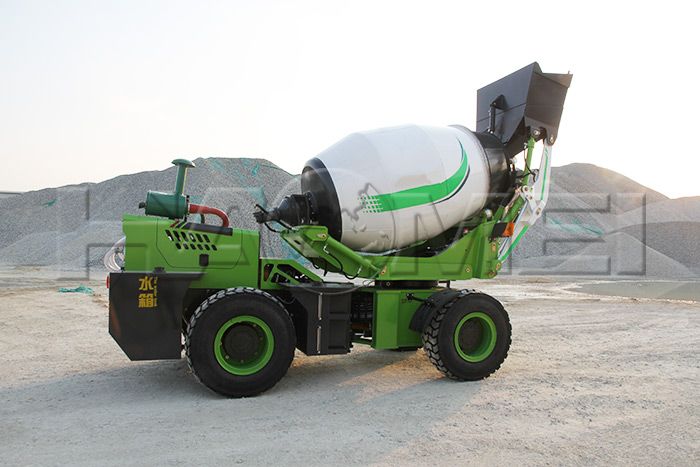

The self loading mixer machine can overcome the shortcomings of concrete mixer trucks in the transportation of concrete. It can load and mix concrete on site and transport it in a short time at the work site. It has become a common equipment in the highway projects. Its mixing drum is used for mixing and transporting concrete.

For the traditional mixing drum, the mixing tank includes a tank body and combined blades arranged in a spiral shape along the inner wall of the tank body. There are two sets of main blades, which are welded to the inner wall of the mixing tank at an angle of 180 degrees.
Due to the defect of the existing mixing tank, there are problems of poor mixing uniformity, slow discharge speed and poor net discharge rate. To improve these problems, we have made some changes.

The tank body consists of a front cone, a middle cylinder and a back cone. The open end of the back cone is used as a feeding port. The open end of the back cone is used as a material port. The side wall of the front cone is provided with a safety port. The length of the front cone is 400mm, and the half angle α of the front cone is 26.5 degrees; the length of the middle tube is 480mm; the length of the back cone is 380mm, and the half angle β of the back cone is 15 degrees.

Double spiral mixing blades are uniformly welded to the inner wall of the tank. The oblique angles of the double spiral mixing blades on the inner wall of the tank are respectively: the front cone 26.5 degrees, the rear cone 15 degrees, and the middle drum 90 degrees.

The new design can improve the uniformity of concrete mixing, accelerate the unloading speed, and ensure the unloading rate of the concrete in the tank. The concrete stranded in the tank caused by the failure of the mixing system can also be timely solved because of the safety hole. Welcome to leave message directly to inquire self loading concrete mixer price.
